제품 상세 정보:
|
| 모델: | MF-SKJ380AS | 최대 속도: | 1000 PC/시간 |
|---|---|---|---|
| 최대 크기: | 360*270mm | 최소 크기: | 90*60mm |
| 전압: | 380/220V,3PH | 블록 두께: | 4-60mm |
| 사용법: | 사진 앨범 제작 기계 | 애플리케이션: | 사진관, 사진관, 인쇄소 |
| 강조하다: | Hard cover book machine 360x270mm,Photo shop book machine 17PCS/Min,MF-SKJ380AS book binding machine |
||

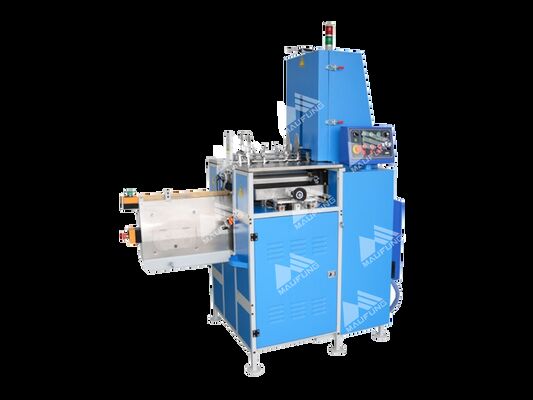

Semi Auto Casing-In Machine for Photo Albums MF-SKJ380AS
Semi Auto Casing-In Machine MF-SKJ380AS is widely used for binding hard cover books, notebooks, soft cover notebooks, photo books, children books,etc. It is a good partner for print finishing process.
1. Standard version is for hard cover book casing in with option of soft cover mold for soft cover book Casing In.
2. Customs version for round spine books.
|
|
| Soft Cover Book Casing In Machine | Round Spine Book Casing In Machine |
| Model | MF-SKJ380AS |
| Power Supply | 380V/220V, 50HZ |
| Mainframe power | 1.5kw |
| Work Speed | 0-17PCS/minute (Adjustable Speed) |
| The Book Block Thickness | 4-60mm |
| Hard Case Chipboard Size(Max) | 360x270mm |
| Hard Case Chipboard Size(Min) | 90x60mm |
| Machine Dimensions(L×W×H) | 1820×930×2100mm |
| Machine Weight | 540kg |
1. Speed Adjustable: Speed range 0-1000 books/hour (17 books/minute).
2. Three modes: Auto, Semi Auto and inch mode. Inch-in switch is for precise aligning for machine adjustment .
3. Automatic power off function: The machine motor will stop running if not operating in 10 minutes. It guarantee the operator safety and greatly extend the machine working life.
4. High quality components: We apply high quality spare parts such as the Mutsushibi, Omron.
|
|
|
Auto Casing In & Joint Forming Machine MF-FAC390
|
Big Size Semi Auto Casing In Machine MF-SKJ560
|
|
|
| Book Joint Forming Machine MF-PCM380EV/560EV | Semi Auto Case Maker MF-SCM500A |
